Product Description
Price includes VAT, delivery and installation.
A member of our team will always contact you when your order comes through, if you need to make any changes (don't panic), we will go over your order with you before it's processed.

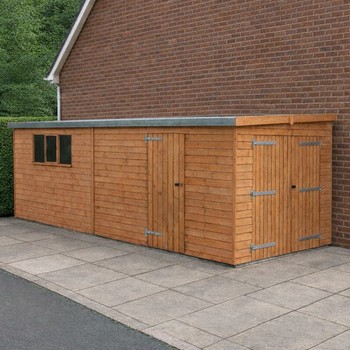

**Please note price shown does not include double doors (shown in picture), see optional extras below**
Nominal 50mm x 50mm framing throughout with diagonal bracing.
Substantial nominal 75mm x 50mm roof truss:
1 up to 15ft
3 up to 20ft
5 up to 30ft
Heavy duty roofing felt and premier cladding are all included in the Premier Model. Also includes 1 set of Joinery Opening Windows, made from safety glass as standard.
We do not use chipboard or sterling boards to cut costs in our buildings.
All our buildings are treated both internally and externally before delivery and installation is made, we do however recommend that you treat the building within 3 weeks of purchase, we recommend Sadolin Classic which is available in over 40 colours from any Crown Decorator Centre. Click Here to Find your Local Crown Decorator Store. Factory painted option also available @ 30% of total building value.
All timber on our website are not nominal sizes, this means the size of the timber after it has been machined. i.e Nominal 16mm becomes 12mm when finished. There can be a slight variation of up to 1mm either way, this is outwith our control.
Please note: Cladding - 16mm becomes 12mm, 19mm becomes 15mm and 22mm becomes 18mm.
Framing - 50mm x 38mm becomes 44mm x 32mm, 50mm x 50mm becomes 44mm x 44mm and 75mm x 50mm becomes 70mm x 44mm.
Eaves Height: 1895mm (74")
Ridge Height: Upto 8' - 2490mm (94")
Upto 10' - 2595mm (102")
Upto 12' - 2690mm (106")
Double Doors: 1880mm (74") x 2135mm (84")
Side Door: 1775mm (69") x 762mm (30")
Windows: 610mm (24") x 457mm (18")
Opening Window: 552mm (22") x 400mm (16")
Framing: 44mm (1.73") x 44mm (1.73")
Cladding: 12mm (0.47") x 121mm (4.7")
SIZES
Available in 7 sizes :-
14' x 12' - 4267mm (168") x 3658mm (144").
16' x 12' - 4877mm (192") x 3658mm (144").
18' x 12' - 5486mm (216") x 3658mm (144").
20' x 12' - 6096mm (240") x 3658mm (144").
22' x 12' - 6706mm (264") x 3658mm (144").
24' x 12' - 7315mm (288") x 3658mm (144").
30' x 12' - 9144mm (360") x 3658mm (144").
The Base
A good strong level base is as important as the building itself. If the base is not strong enough or level (especially the diagonal levels) the building could twist causing damage to the roof, broken windows and jammed doors.
We would thoroughly recommend you consider investing in a proper base made from slabs or concrete.
The purpose of the base is two-fold, first to take the weight of the building and not move once the building is erected avoiding windows breaking and doors jamming and secondly to seal off the ground and prevent moisture evaporating up through the floor. A good base can add years to the life of any building. We do have a landscape gardening contact who can do this for you if required.
**Please select options carefully**
